SMC - 6500 Concrete Slipform Paver: Advanced Concrete Paving Solution

Name: SMC - 6500 Concrete Slipform Paver: Advanced Concrete Paving Solution
Brand: Jiangsu Siming Engineering Machinery Co., Ltd.
SKU: SMC-6500
Availability: InStock

製品詳細

起源の場所: 中国

ブランド名: SIMING

証明: ISO9001/CE

モデル番号: SMC-6500

支払いと送料の条件

最小注文数量: 1 PSC

パッケージの詳細: 容器

受渡し時間: 30〜45日

支払条件: L/C、T/T

お問い合わせ

製品詳細

製品説明

ハイライト:
                                                                                                                                                                                                                                                                                                                SMC 6500 concrete slipform paver, concrete paving machine with warranty, slipform paver for concrete construction


舗装幅:	2500~4500mm	保証:	1年
舗装深さ:	0-15 m/min	旅行速度:	0〜1.8 km/h
総重量:	19.5t	振動周波数:	0-167 HZ
燃料容量:	320L	水タンク容量:	550L

舗装幅:	2500~4500mm
保証:	1年
舗装深さ:	0-15 m/min
旅行速度:	0〜1.8 km/h
総重量:	19.5t
振動周波数:	0-167 HZ
燃料容量:	320L
水タンク容量:	550L

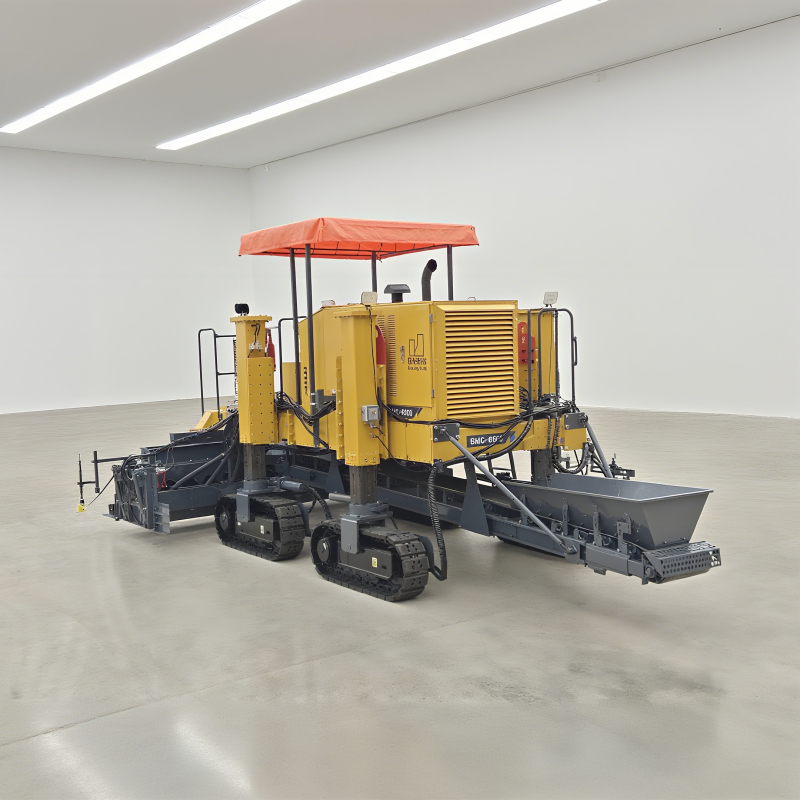

SMC - 6500 Concrete Slipform Paver: Advanced Concrete Paving Solution

4.5-meter rear-mounted mold cement slipform paver designed for rural road construction projects.

Application Conditions

The SMC-6500 slipform paver is independently developed concrete construction equipment, primarily used for high-standard pavement projects. Featuring large power reserve, full electronic control, hydraulic drive, and four-track travel, it incorporates automatic steering and leveling systems to complete the entire process of cement concrete feeding, distribution, vibration, compaction, paving, and smoothing in one operation. The rear-mounted mold design solves road base clearance issues, enabling negative clearance construction, making it ideal for county and rural roads without shoulders.

Functional Features

Shangchai 6-cylinder engine with electric preheating, high power output suitable for high-altitude construction; High-pressure common rail control compliant with National III emission standards (National IV optional)
Advanced industrial CAN bus communication system between control panel and main control box for simplified, reliable operation
User-friendly widescreen LCD display showing machine status with intuitive fault indications
Full track steering system with positioning function for multiple steering modes and quick positioning under various conditions
Automatic leveling system ensures paved surface smoothness and quality of auxiliary facilities
Automatic steering function creates perfect linearity during paving
Four elongated tracks enhance ground adhesion capability
Rear-mounted mold enables negative gap construction for rural and shoulder-less roads, with high-pressure water gun system for cleaning
550L large water tank for continuous operation

Technical Parameters

Parameter	Value
Paving width	2500-4500 mm
Paving height	0-300 mm
Flatness	±3 mm/3m
Paving Speed	0-15 m/min
Driving speed	0-1.8 km/h
Vibrator brand	WYCO
Vibrator interface	12
Vibrator frequency	0-167 Hz
Fuel tank	320L
Water tank	550L
Engine	Shangchai SC7H180G3
Rate power	132Kw/2200rpm
Emission standard	Phase IV (Phase III optional)
Feed system	Belt
Weight	19.5 t
Transport size (LWH)	750030002800 mm
