製品詳細
起源の場所: 江蘇、中国
ブランド名: SIMING
証明: ISO 9001\CE
モデル番号: SMC-6800
支払いと送料の条件
最小注文数量: 1ユニット
パッケージの詳細: 配送
受渡し時間: 30〜45日
振動周波数: |
0-167 HZ |
舗装幅: |
3500-8500mm |
振動システム: |
油圧 |
舗装厚: |
0-450mm |
アプリケーション: |
コンクリート舗装 |
歩行速度: |
0-6m/min |
燃料タンク容量: |
470L |
ディーゼル タンク容積: |
370L |
重さ: |
30T |
保証: |
1年 |
エンジンパワー: |
177 kW@2200rpm |
状態: |
新しい |
振動周波数: |
0-167 HZ |
舗装幅: |
3500-8500mm |
振動システム: |
油圧 |
舗装厚: |
0-450mm |
アプリケーション: |
コンクリート舗装 |
歩行速度: |
0-6m/min |
燃料タンク容量: |
470L |
ディーゼル タンク容積: |
370L |
重さ: |
30T |
保証: |
1年 |
エンジンパワー: |
177 kW@2200rpm |
状態: |
新しい |

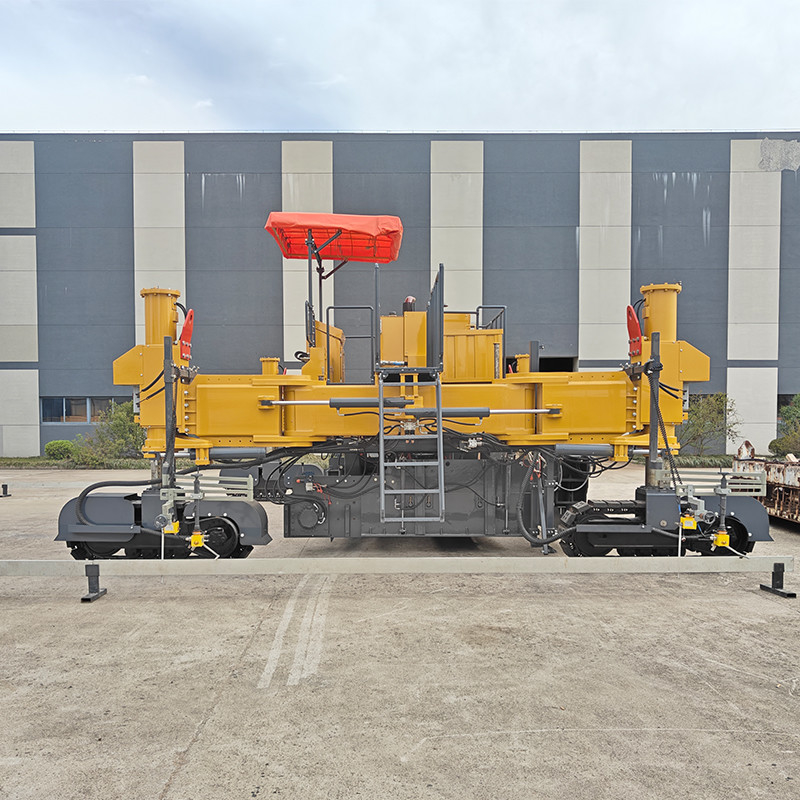

Product Introduction
Functional Advantages:
Power System
Water - cooled engine + parallel - flow three - way radiator form a “cooling strike team”. Forced air - cooling boosts efficiency, 24 - hour non - stop operation without “breaking down”. Breaks the “overheating curse” of long - term work!
Hydraulic System
1. Four pump load sense hydraulic system from well-known international brands.
2. The inlet and outlet ports of the pump are equipped with high quality filters.
Electronic Control system
The main console features an “intelligent central brain” with colorful graphical interaction + instant fault diagnosis. Steering / grade auto - calibration, sensors “cooperate via CAN - bus”, keeping construction parameters rock - solid!
Traveling Device
Four - track “hydraulic tank tracks”, handling heavy - load construction smoothly. Load - sensing drive keeps the system “cool - working”, no temper tantrums in high temps. Solves complex terrain “incompatibility”!
concrete spreading system
Dual - hydraulic auger “intelligent material - homogenizing arms”, instantly turning irregular dump piles into uniform paving layers. Stepless speed regulation tames any messy material piles, the ultimate cure for construction “obsessiveness”!
Water System
1. Type: High pressure washer with water gun.
2. One Standard water tank capacity is 400L,four 130L tanks option.
Tie Bar inserter(Option)
Technical Parameters
| Paving Width | 3500-8500 mm |
| Paving Thickness | 100-480 mm |
| Smoothness | ±3 (mm/3m) |
| Paving Speed | 0-6 m/min |
| Speed | 0-1.1 km/h |
| Vibrating Circuits | 24 |
| Vibrating Frequency | 0-167 Hz |
| Diesel Tank | 370 L |
| Water Tank | 400 L(standard)+140L*4(optional) |
| Total length | 13740/9640 mm(transportation/work) |
| Width | 2800/7300 mm(transportation/work) |
| Height | 3220/4300 mm(transportation/work) |
| Engine Model | SC7H240 G4 |
| Power | 177 Kw@2200rpm |
| Emission | stage 4 |
